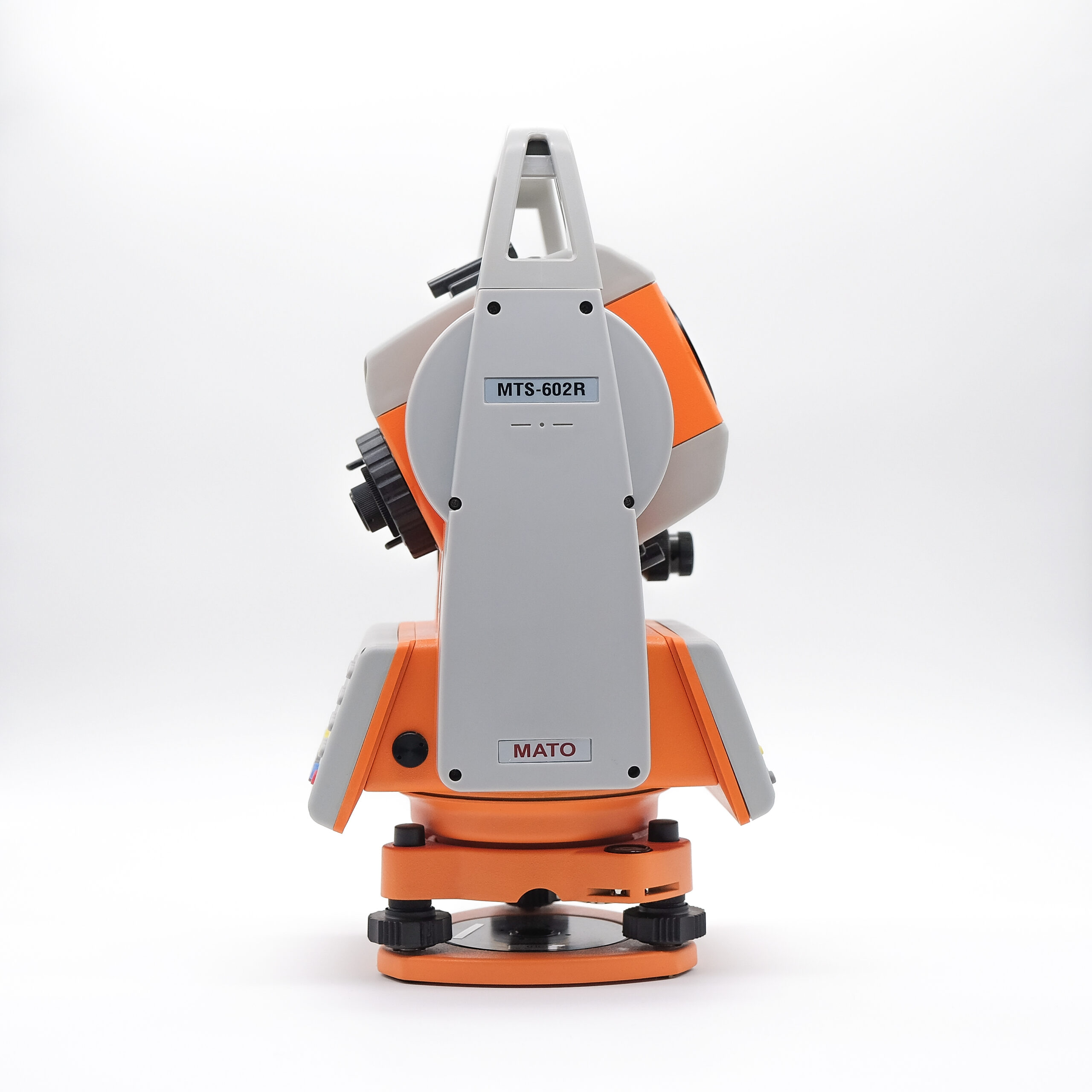

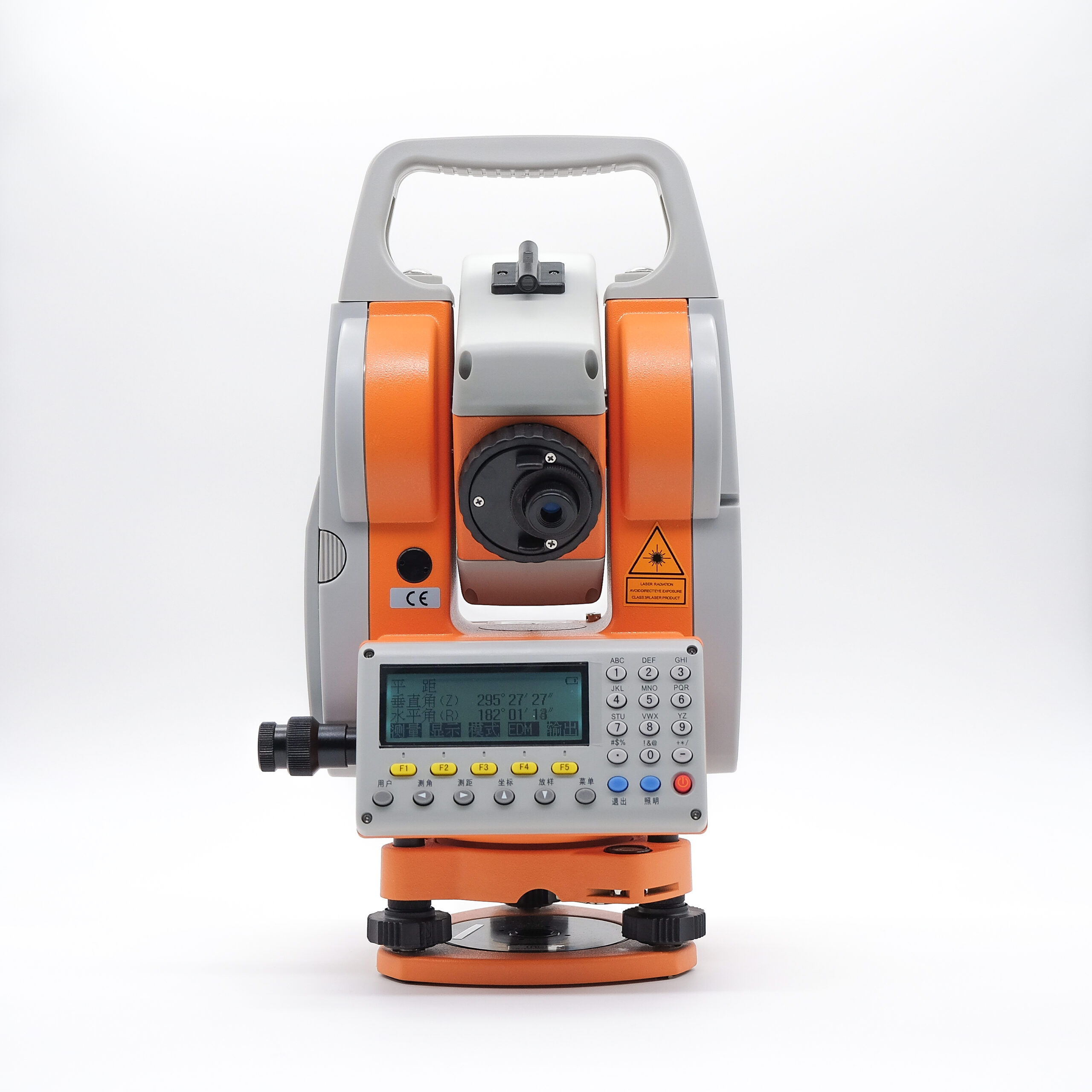

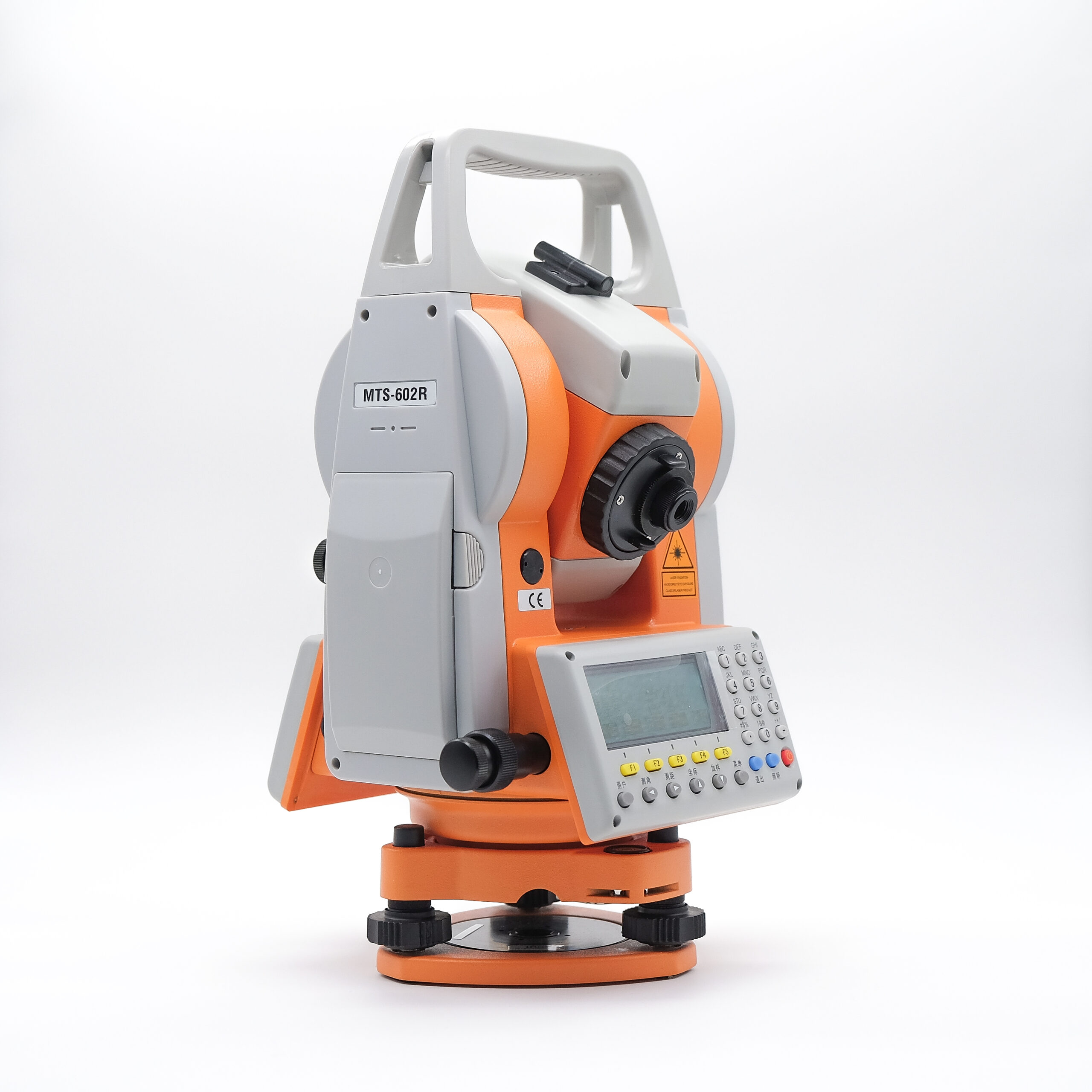

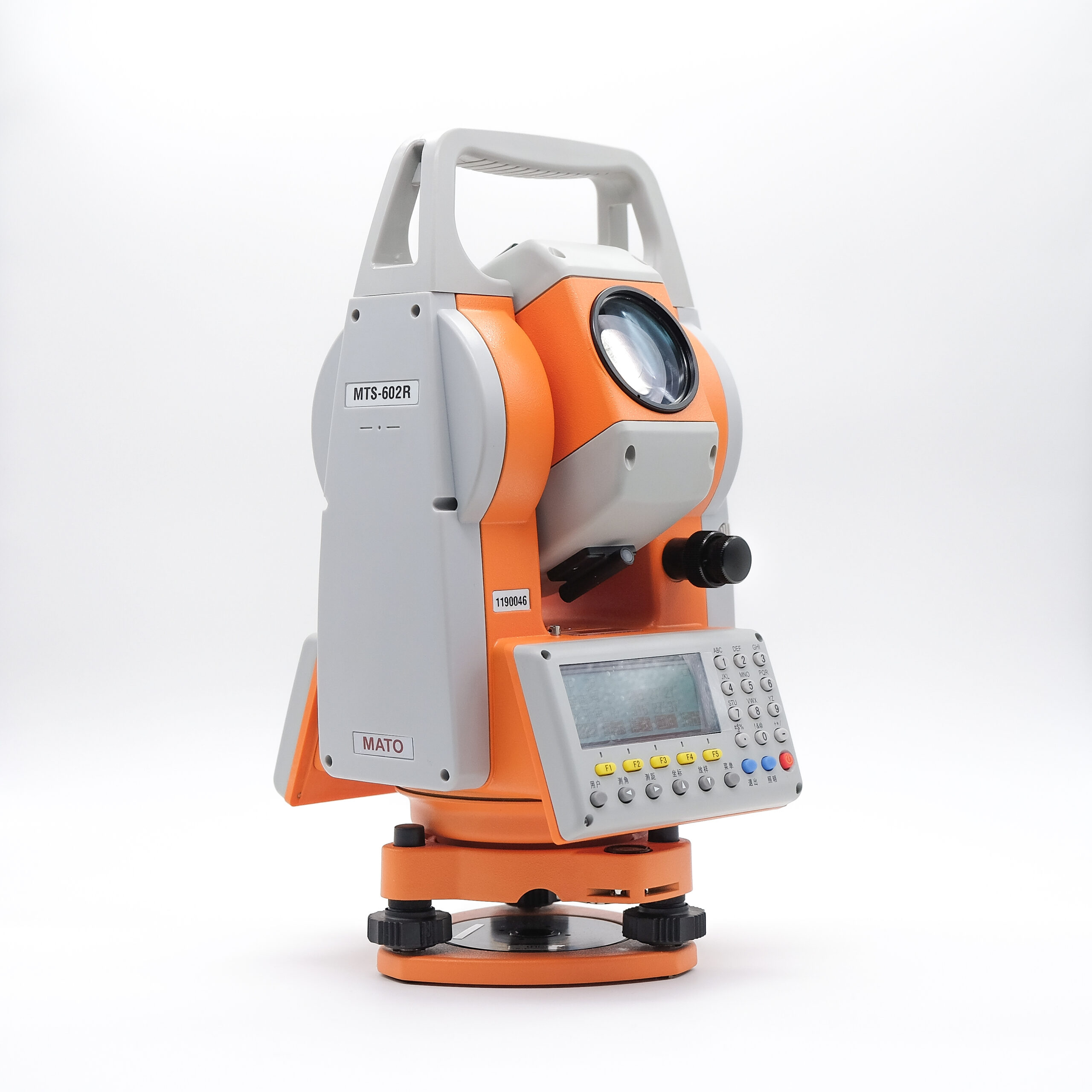

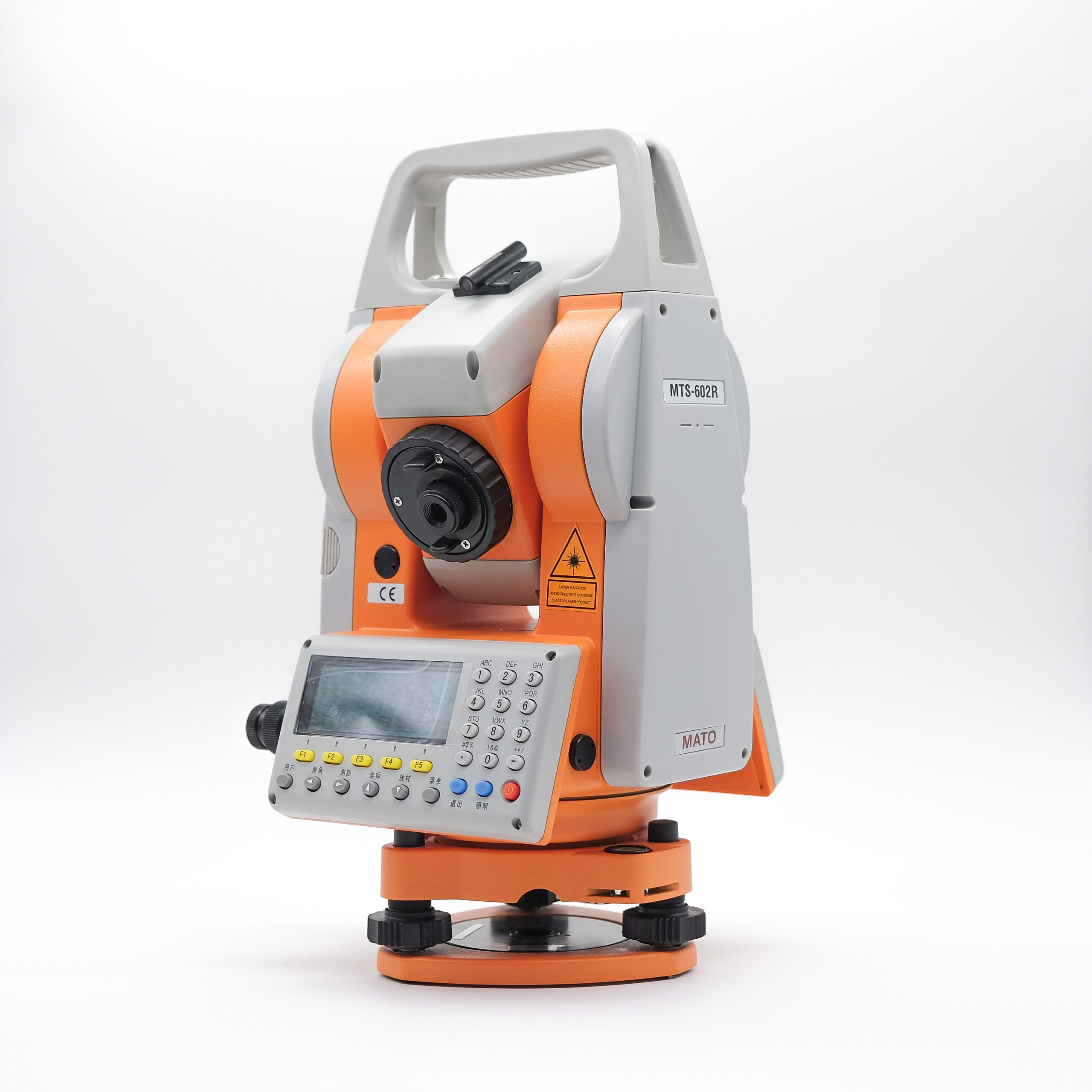

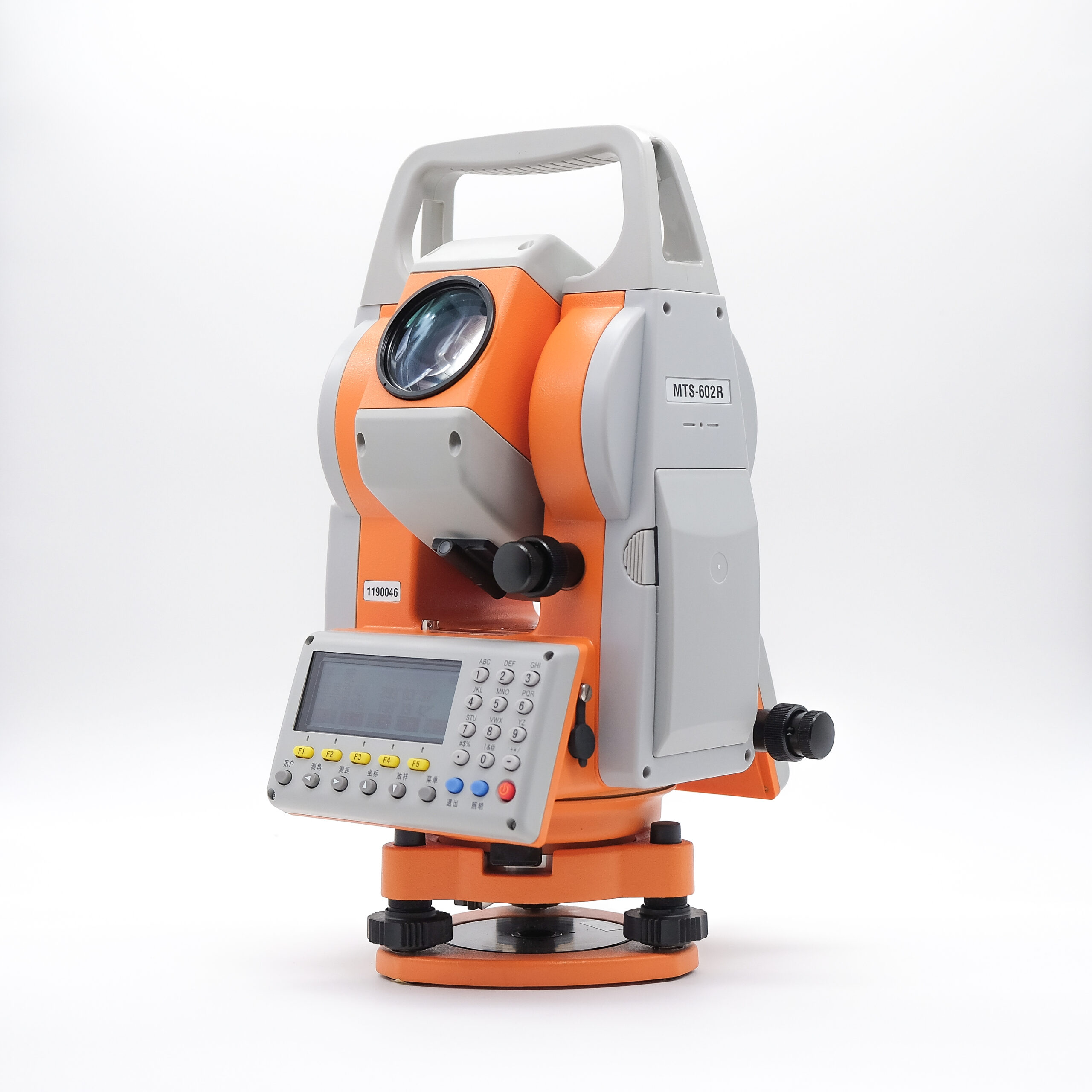

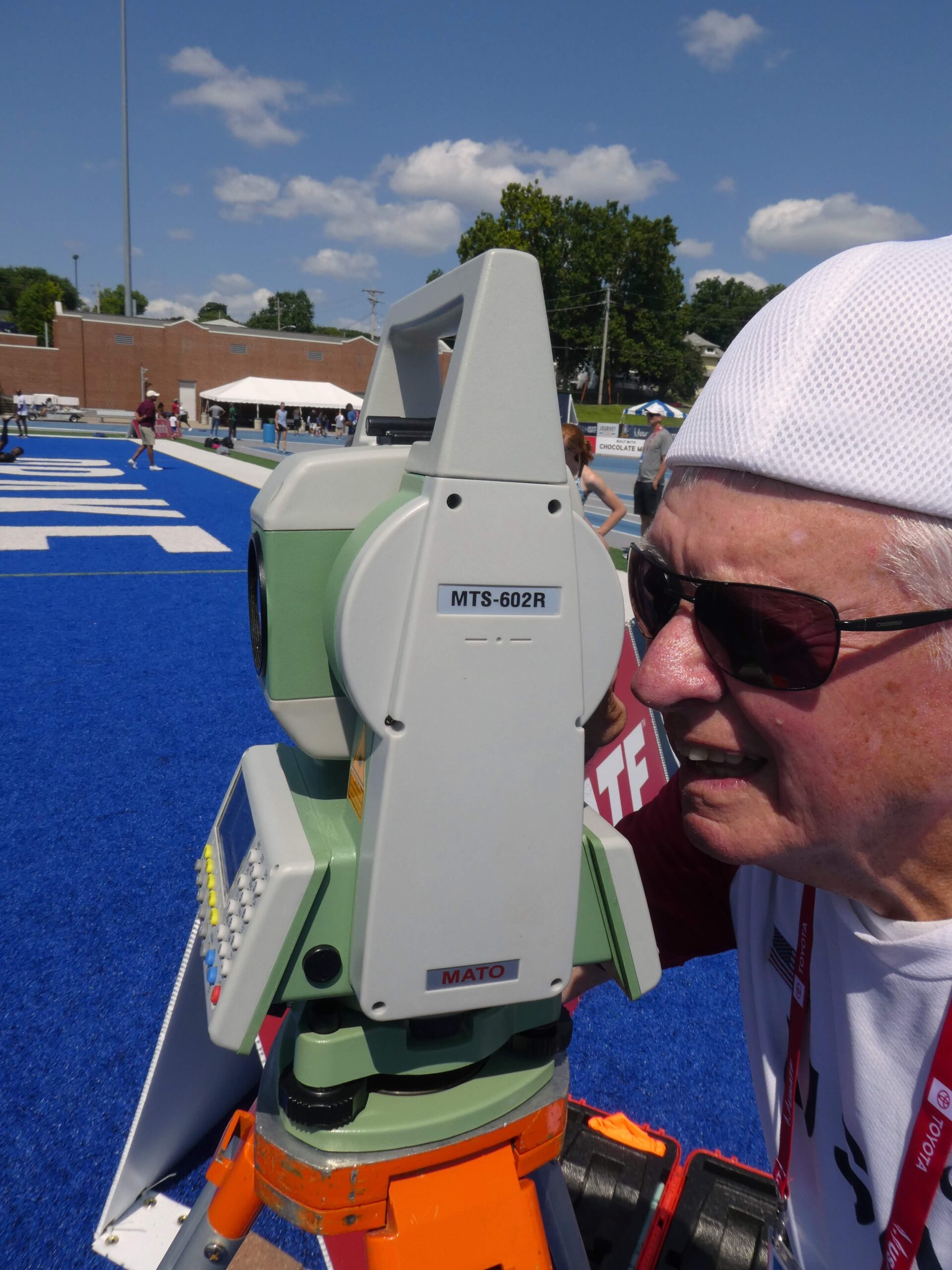

MTS602R

Specifications

Telescope

Aperture: 45mm

Magnification: 30×

Image: Erect

Field of view: 1°30′

Minimum focus: 1.5m

Distance Measurement

Measuring range:

Reflectorless: *1

MTS-602R 200m *2

MTS-605R 200m *2

Reflective sheet: *3

MTS-602R 800m

MTS-605R 800m

Single prism: *3

MTS-602R –5.0km

MTS-602 —-2.0km

MTS-605R —3.0km

MTS-605 —-2.0km

Three prisms: *3:

MTS-602 —–3.0km

MTS-605 —–3.0km

Accuracy :

MTS-602 (R) — ±(2+2×10 -6 ·D) mm *4

MTS-605 (R) — ±(2+2×10 -6 ·D) mm *4

Minimum display :

Fine measurement : 1mm

Rapid measurement : 1mm

Tracking measurement : 1mm

Measuring time :

Fine measurement (repeat) : about 1.8sec.(first time2.5sec.)

Rapid measurement(repeat) : about 0.9sec.(first time 2.5sec.)

Tracking measurement : about 0.4sec.(first time 1.5sec.)

Atmospheric correction :

ppm input range : -499×10 -6 ~+499×10 -6(step 1×10 -6)

Prism constant correction : -99×10 -6 ~+99×10 -6 (step 1×10 -6 )

Angle measurement

Minimum display: 10″/5″/1″

Standard deviation:

MTS-602(R)—2″

MTS-605(R)—-5″

Measuring time : 0.1sec.

Range of compensation : ±3′(MTS-602(R))

level parameter :

Circular level: 8′ /2mm

Plate level : 30″/2mm

Battery

Voltage: DC 7.2V

Capacity:

Nickel hydrogen battery BDC18H: 1.8AH

Working duration(20℃): Distance and angle measurement: 4 hours

Lithium battery BDC40L: 4.0AH

Working duration(20℃):Distance and angle measurement: 8hours

Temperature range

Operating : -20℃~+50℃

Dimension   (190X210X350)mm

Weight     6kg



*1: When performing reflectorless measurement, the possible measurement range and precision will change on

the target reflection factor, weather conditions and location conditions.

*2: Object :Kodak Gray Card, 90% reflective, and object in shade, or sky overcast, no scintillation

*3 No haze, visibility about 40km, overcast, no scintillation

*4:Measurement with prism or reflective sheet.
